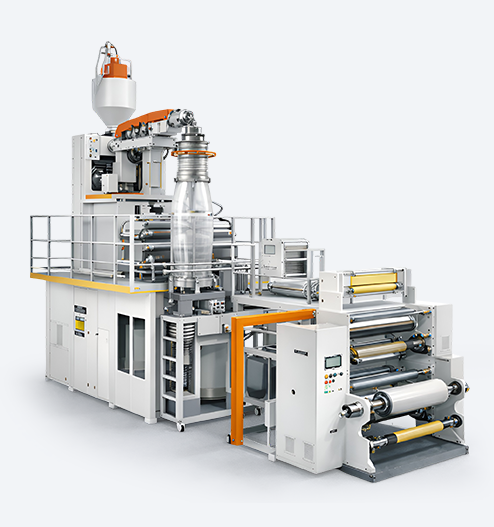

The PP Blown Film Plant / PP Blown Film Extrusion Line is a high-efficiency solution engineered for manufacturing superior quality polypropylene (PP) films used in a wide range of packaging applications. Designed with advanced extrusion technology, it converts PP granules into uniform, high-strength films with excellent clarity, durability, and heat resistance. The system ensures consistent film thickness and superior bubble stability, delivering output suitable for food packaging, textile wrapping, industrial liners, and lamination applications.
Equipped with precision temperature control, optimized screw design, and energy-efficient drives, the plant operates smoothly at high production capacities while maintaining low power consumption. Its user-friendly automation minimizes manual intervention, improves process accuracy, and enhances overall productivity. Built with robust construction and high-grade components, the PP Blown Film Plant offers long-term reliability, low maintenance, and seamless compatibility with modern packaging requirements, making it an ideal choice for manufacturers seeking performance and efficiency in film production.
| MODEL | M-VMOSA/PP/40 | M-VMOSA/PP/45 | M-VMOSA/PP/50 | M-VMOSA/PP/55 | M-VMOSA/PP/65 |
|---|---|---|---|---|---|
| Screw Dia | 40 mm | 45 mm | 50 mm | 55 mm | 65 mm |
| L/D Ratio | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
| Max Output per Hour | 40 Kgs | 50 Kgs | 70 Kgs | 100 Kgs | 130 Kgs |
| Main Drive | 7.5 HP | 10 HP | 15 HP | 20 HP | 30 HP |
| Lay Flat Width (Min - Max) | 50 - 400 mm | 50 - 500 mm | 100 - 625 mm | 375 - 750 mm | 500 - 1000 mm |
| Thickness (Min-Max) microns | 20 - 100 | 20 - 100 | 20 - 100 | 20 - 120 | 20 - 150 |
| Die Type | Spiral | Spiral | Spiral | Spiral | Spiral |
| Die Size | 150 mm | 175 mm | 200 mm | 300 mm | 400 mm |
| Temperature Controllers | 8 nos. | 8 nos. | 8 nos. | 8 nos. | 10 nos. |
| Control Panel | Complete Set | ||||
| Bath Tub | Moving Upward & Downward (Motorised with 0.5 HP Worm Geared Motor) | ||||
| Filter Type | Candle | ||||
| Take off Motor | 0.5 HP | 1 HP | 1 HP | 1 HP | 2 HP |
| Winder Type | Front-Shaft Type | ||||
| Winder Motor | 0.5 HP | 1 HP | 1 HP | 1 HP | 2 HP |
| Air Cooling Ring | Adjustable Ring Provided | ||||
| Air Blower | - | 2 HP + 2 HP | 2 HP + 2 HP | 2 HP + 2 HP | 3 HP + 3 HP |
| Nip Roller Motor | 0.5 HP | 1 HP | 1 HP | 1 HP | 2 HP |
| Nip Roller Size | 500 mm (20") | 625 mm (25") | 800 mm (32") | 900 mm (36") | 1150 mm (46") |
| Rotating Die | Possible | Possible | Possible | Possible | Possible |
| Total Connected Load | 21 KW | 23 KW | 29 KW | 35 KW | 52 KW |
| Floor Space (L x W x H) | 15' x 7' x 14' | 17' x 7' x 16' | 19' x 7' x 17' | 20' x 8' x 18' | 26' x 10' x 20' |
